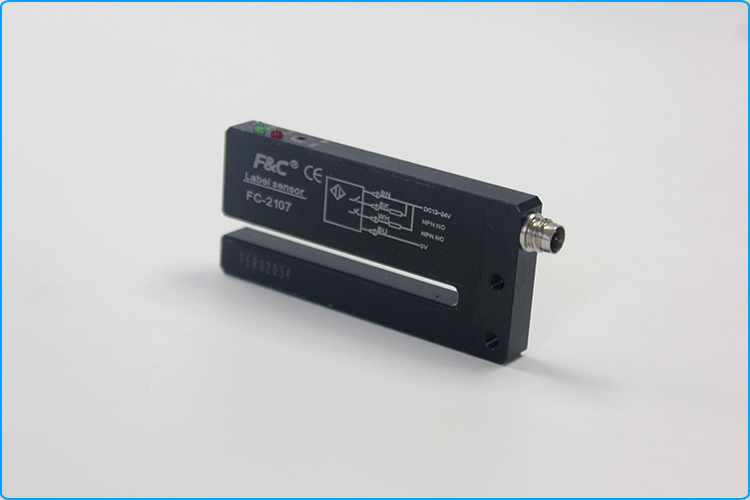

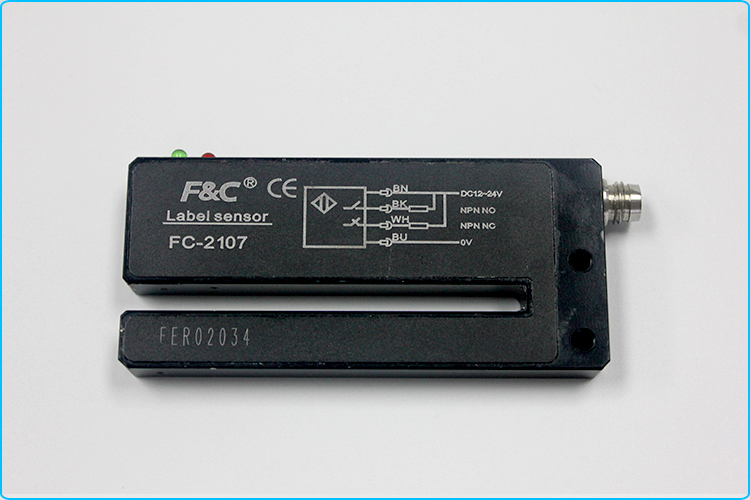

5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE

Brand Name : F&C

Model Number : FC-2107P/D

Certification : CE,Rohs

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT, paypal, Western Union

Supply Ability : 50pcs per week

Delivery Time : 7-10days

Packaging Details : single box package

Power supply : 12-24V DC

Output type : NPN NO. NC

Accuracy : 0.5mm

Slot width : 5mm

Application : Packing machine

Theory : Optical label sensor

Load current : 100mA at 24VDC

Wiring : M8 4pin connector

Contact Now

5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE

Optical Label sensor used for most common sticker label and not suitable for clear label sensing, it is very popular in market with competitive price. Model FC-2107/D, it is NPN output with M8 4 pin connector and potentionmeter, easy to adjust, install and change.

5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE

Specifications for Adhesive Optical Label sensor:

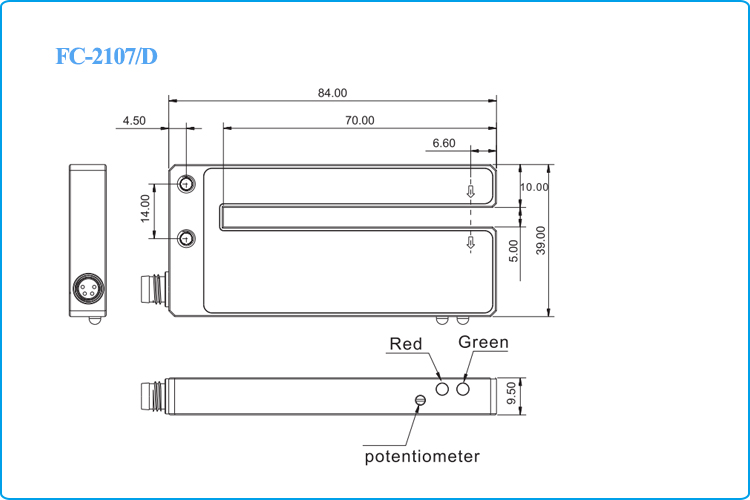

Model	FC-2107/D
Output type	NPN NO NC
Detection distance	5mm
Light source	940nm infrared modulated light
Operating voltage	DC12-24V±10%
Current consumption	15mA Max
Load current	100mA Max at DC ;24V
Protection circuit	Reverse polarity protection and short circuit protection
Response time	500us Max
Leakage current	<0.01mA no-load
Operating temperature	-10℃-+50℃(without icing or condensation)
Storage temperarure	-20℃~+60℃(No freezing )
Ambient humidity	35%-85% RH
Protection degree	IP66
Meterial	Aluminium metal sheet
Wiring method	φ4mm×2M/4-wires/φ4mm×2M/M8 4-wires

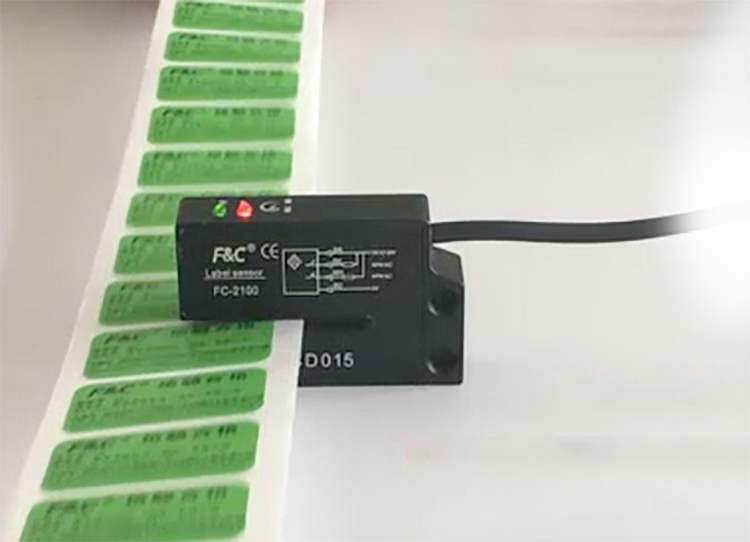

Applications

5mm Slot M8 Connector 24VDC NPN Adhesive Label Sensor Potentionmeter with CE

Video or more details, welcome to inquiry us.
