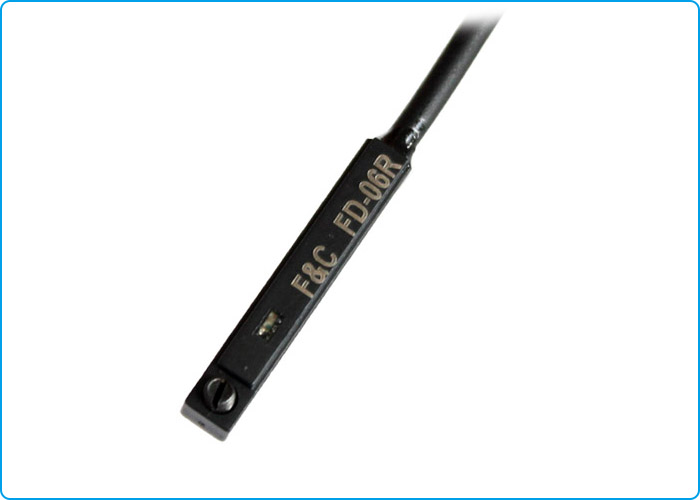

Mini Square 2 Wire Electric Magnetic Switch Reed Switch Sensor Normally Open

Brand Name : F&C

Model Number : FD-06R

Certification : CE RoHS

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : Western Union, T/T

Supply Ability : 10000Pcs Per Month

Delivery Time : 10days after deposit

Packaging Details : Standard Export Package

Switch Type : Normal Open

Operating voltage : 12-24VDC

Frequency : 1000HZ

Indicator : Red Indicator

Waterproof Grade : IP67

Operating Temperature : -10 ~ +70℃

Contact Now

Mini Square 2 Wire Electric Magnetic Switch Reed Switch Sensor Normally Open

2 Wires Electric Magnetic Switch Sensor are usder for cylinder and has function of postion for cylinder. We can make both 2 wires and 3 wires magnetic swtich

M8 M12 plug type is availabe.

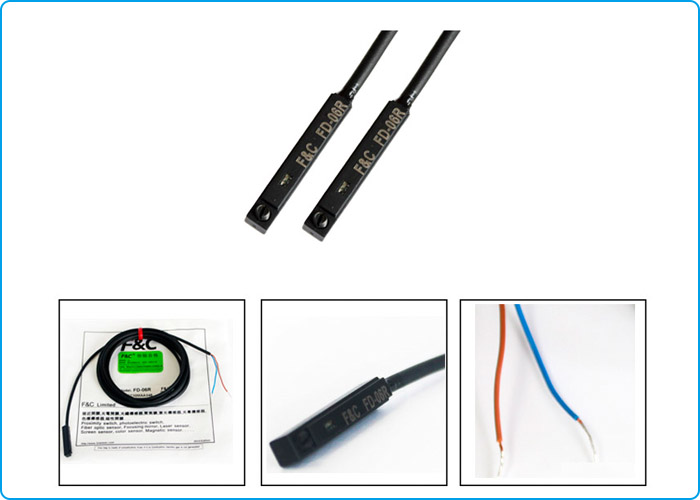

Mini Square 2 Wire Electric Magnetic Switch Reed Switch Sensor Normally Open

Specification

Model	FD-06R	FD-06N	FD-06P
Diagram
Wires	2-wire	3-wire
Switch Type	Reed pipe Normal Open	NPN NO	PNP NO
Operating Voltage	5-120V DC/AC	10-30VDC
Switching Current	100mA.Max	200mA.Max
Contact Power	3.5W Max	6W Max.
Current Comsumption	/	11mA max.
Indicator	Red LED	Red LED	Green LED
Cable	Dia2.8 2C ,PVC
Frequency	1000HZ
Operating Temperature	-10 ~ +70℃
Shock	30G	50G	50G
Vibration	9G
Waterproof Grade	IP67
Circuit Protection	No	Polarity reverse and short-circuit protection
