Brand Name : F&C
Model Number : FKCT2210-N
Certification : CE, RoHS
Place of Origin : China
MOQ : 1Pcs
Price : 5-15USD
Packaging Details : 1Pcs in a plastic bag
Output Method : NPN NO
Detection Distance : 8mm
Operating Voltage : 12~24VDC
Standard Detection Object : 15*15*1(non-metal)
Response Frequency : 600HZ
Operating Temperature : -25~70℃
Waterproof Grade : IP67
Material : ABS
Specifications for capacitance proximity switch:

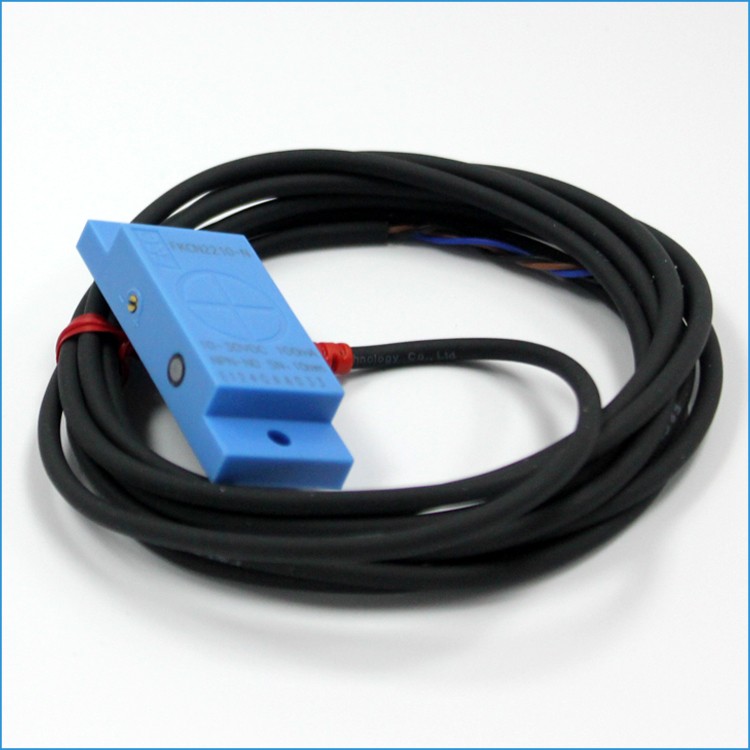

| F&C FKCN2210-N 10mm 12-24V dc capacitive proximity sensor | |
| Model | FKCN2210-N |
| Detection Distances | 10mm |
| Standard Sensing Object | Non-Metal |
| Response Frequency | 600HZ |
| Hysteresis | Less than 10% of sensing distance |
| Detection Method | NPN NO |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 10mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.0VDC |
| Leakage Current | Less than 0.01mA( No Load) |
| Protection Degree | IP66 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | diameter 4mm*2M/-3wires , -4wires,-2wires |
